export_util

Module for exporting a graph database or query results in different formats.
Currently, this module supports:

exporting the database in a JSON format to a file or a stream
exporting certain nodes and relationships in a JSON format to a file or a stream
exporting the database to Cypher queries in a file or a stream
exporting query results in a CSV format to a file or a stream
exporting certain nodes and relationships in a CSV format to a file or a stream
exporting database in a graphML file format to a file or a stream.

Trait	Value
Module type	util
Implementation	Python
Parallelism	sequential

Procedures

You can execute this algorithm on graph projections, subgraphs or portions of the graph.

`json()`

The procedure exports the graph database to a local file.

Input:

subgraph: Graph (OPTIONAL) A specific subgraph, which is an object of type Graph returned by the project() function, on which the algorithm is run. If subgraph is not specified, the algorithm is computed on the entire graph by default.
path: string Path to the JSON file containing the exported graph database.
config: Map Map of the configuration with the following keys:
- stream: boolean (default=False) Is the data exported to a stream rather than a file.
- write_properties: boolean (default=True) Are the properties exported as well.

Output:

path: string The path to the exported file.
data: string Exported data if the stream flag was set to True.

Usage:

The path you have to provide as procedure argument depends on how you started Memgraph.

DockerLinux

If you ran Memgraph with Docker, database will be exported to a JSON file inside the Docker container. We recommend exporting the database to the JSON file inside the /usr/lib/memgraph/query_modules directory.

You can call the procedure by running the following query:

CALL export_util.json(path);

The path is the path to the JSON file inside the /usr/lib/memgraph/query_modules directory in the running Docker container (e.g., /usr/lib/memgraph/query_modules/export.json).

You can copy the exported JSON file to your local file system using the docker cp command.

To export database to a local JSON file create a new directory (for example, export_folder) and run the following command to give the user memgraph the necessary permissions:

sudo chown memgraph export_folder

Then, call the procedure by running the following query:

CALL export_util.json(path);

The path is the path to a local JSON file that will be created inside the export_folder (e.g., /users/my_user/export_folder/export.json).

`json_graph()`

Exports the given nodes and relationships to the JSON format. All nodes from the relationships have to be contained in the nodes as well.

Input:

subgraph: Graph (OPTIONAL) A specific subgraph, which is an object of type Graph returned by the project() function, on which the algorithm is run. If subgraph is not specified, the algorithm is computed on the entire graph by default.
nodes: List[Node] The list of nodes that need to be exported.
relationships: List[Relationship] The list of relationships that need to be exported.
path: string The path to the JSON file containing the exported data.
config: Map Map of the configuration with the following keys:
- stream: boolean (default=False) Is the data exported to a stream rather than a file.
- write_properties: boolean (default=True) Are the properties exported as well.

Output:

path: string The path to the exported file.
data: string Exported data if the stream flag was set to True.

`cypher_all()`

Exports the database as a list of Cypher queries in the specified .cyp file or stream.

Input:

subgraph: Graph (OPTIONAL) A specific subgraph, which is an object of type Graph returned by the project() function, on which the algorithm is run. If subgraph is not specified, the algorithm is computed on the entire graph by default.
path: string The path to the Cypher file containing the exported graph database.
config: Map The map of the configuration with the following keys:
- stream: boolean (default= False) Is the data exported to a stream rather than a file.
- write_properties: boolean (default=True) Are the properties exported as well.
- write_triggers: boolean (default=True) Are triggers exported as well.
- write_indexes: boolean (default=True) Are indexes exported as well.
- write_constraints: boolean (default=True) Are constraints exported as well.

Output:

path: string The path to the exported file.
data: string Exported data if the stream flag was set to True.

`csv_query()`

The procedure exports query results to a CSV file.

Input:

subgraph: Graph (OPTIONAL) A specific subgraph, which is an object of type Graph returned by the project() function, on which the algorithm is run. If subgraph is not specified, the algorithm is computed on the entire graph by default.
query: string The query from which the results will be saved to a CSV file.
file_path: string The path to the CSV file where the query results will be exported.
stream: boolean (default=False) Will the procedure return a stream of query results in CSV format rather than a file.

Output:

file_path: string The path to the CSV file where the query results are exported.
data: string A stream of query results in a CSV format if the stream flag was set to true.

Usage:

The file_path you have to provide as procedure argument depends on how you started Memgraph.

DockerLinux

If you ran Memgraph with Docker, query results will be exported to a CSV file inside the Docker container. We recommend exporting the database to the CSV file inside the /usr/lib/memgraph/query_modules directory.

You can call the procedure by running the following query:

CALL export_util.csv_query(path);

The path is the path to a CSV file inside the /usr/lib/memgraph/query_modules directory in the running Docker container (e.g., /usr/lib/memgraph/query_modules/export.csv).

You can copy the exported CSV file to your local file system using the docker cp command.

To export query results to a local CSV file create a new directory (for example, export_folder) and run the following command to give the user memgraph the necessary permissions:

sudo chown memgraph export_folder

Then, call the procedure by running the following query:

CALL export_util.csv_query(path);

The path is the path to a local CSV file that will be created inside the export_folder (e.g., /users/my_user/export_folder/export.csv).

`csv_graph()`

The procedure exports the given lists of nodes and relationships into a CSV file.

Input:

nodes_list: List[Node] The list of nodes that will be exported.
relationships_list: List[Relationship] The list of relationships that will be exported.
path: string (default="./exported_file.csv") The path where the exported file will be saved, ending with the filename, for example, folder_outer/folder/file.csv.
config: Map The map of the configuration with the following keys:
- delimiter: string (default=",") The delimiter used to separate fields in the CSV file.
- quotes: string (default="All") The type of quoting to apply to fields in the CSV file. Possible values are none for no quotes added, ifNeeded for adding quotes only when necessary, All to always use quote.
- separateHeader: boolean (default=False) Indicates whether the CSV file header should be separated into its own file. If True, a file named header.csv will be created in the specified or default directory.
- stream: boolean (default=False) Will the procedure return a stream of data rather than a file.

Output:

data: string If stream flag was set to True, a string stream representation of data.
path: string The path to the exported CSV file.

File structure

The CSV file columns are structured in the following way:

_id	_labels	node_properties_sorted	_start	_end	_type	relationship_properties_sorted
node ID	node labels	alphabetically sorted properties of all nodes (all node properties present in the graph)	ID of the start node of a relationship	ID of the end node of a relationship	type of relationship	alphabetically sorted properties of all relationships (all relationship properties present in the graph)

For example, consider a simple graph created with the following Cypher query:

CREATE (d:Dog {name: "Rex", breed: "Dalmatian"})-[i:IS_OWNED_BY {rel_property: 30}]->(h:Human {name: "Carl", age: 50});

The Dog nodes ID is 0, and the Human nodes ID is 1. Exporting would result in a CSV file structured in the following way:

_id	_labels	age	breed	name	_start	_end	_type	rel_property
0	:Dog		Dalmatian	Rex
1	:Human	50		Carl
					0	1	IS_OWNED_BY	30

Usage without configurations:

The following example will show how to use the csv_graph procedure without any additional configuration.

First, create a graph using the following queries:

CREATE (d:Dog {name: "Rex", breed: "Dalmatian"})-[i:IS_OWNED_BY {rel_property: 30}]->(h:Human {name: "Carl", age: 50});
CREATE (hs:Human:Soldier {branch : "Army"})-[t:TRAINS { duration: duration("P10D")}]->(d:Dog:K9 {name: "Bolt", years_of_service: 3});

[image]

Then run the query to export nodes and relationships into a file.csv file in /demontration/export directory:

MATCH (n)
OPTIONAL MATCH (n)-[r]-()
WITH COLLECT(DISTINCT n) AS nodes, COLLECT(DISTINCT r) AS relationships
CALL export_util.csv_graph(nodes, relationships, "/demonstration/export/Documents/file.csv", {}) YIELD data, path RETURN data, path;

CSV result as a table:

_id	_labels	age	branch	breed	name	years_of_service	_start	_end	_type	duration	rel_property
0	:Dog			Dalmatian	Rex
1	:Human	50			Carl
2	:Human:Soldier		Army
3	:Dog:K9				Bolt	3
							0	1	IS_OWNED_BY		30
							2	3	TRAINS	duration(10 days,0:00:00)

CSV file:

"_id","_labels","age","branch","breed","name","years_of_service","_start","_end","_type","duration","rel_property"
"0",":Dog","","","Dalmatian","Rex","","","","","",""
"1",":Human","50","","","Carl","","","","","",""
"2",":Human:Soldier","","Army","","","","","","","",""
"3",":Dog:K9","","","","Bolt","3","","","","",""
"","","","","","","","0","1","IS_OWNED_BY","","30"
"","","","","","","","2","3","TRAINS","duration(10 days, 0:00:00)",""

Usage with configurations:

The following example will show how to use the csv_graph procedure with additional configuration.

First, create a graph using the following queries:

CREATE (d:Dog {name: "Rex", breed: "Dalmatian"})-[i:IS_OWNED_BY {rel_property: 30}]->(h:Human {name: "Carl", age: 50});
CREATE (hs:Human:Soldier {branch : "Army"})-[t:TRAINS { duration: duration("P10D")}]->(d:Dog:K9 {name: "Bolt", years_of_service: 3});

[image]

Delimiter

The following query is an example of using a different delimiter than default.

MATCH (n)
OPTIONAL MATCH (n)-[r]-()
WITH COLLECT(DISTINCT n) AS nodes, COLLECT(DISTINCT r) AS relationships
CALL export_util.csv_graph(nodes, relationships, "/demonstration/export/Documents/file.csv", {delimiter : "|"}) YIELD data, path RETURN data, path;

"_id"|"_labels"|"age"|"branch"|"breed"|"name"|"years_of_service"|"_start"|"_end"|"_type"|"duration"|"rel_property"
"0"|":Dog"|""|""|"Dalmatian"|"Rex"|""|""|""|""|""|""
"1"|":Human"|"50"|""|""|"Carl"|""|""|""|""|""|""
"2"|":Human:Soldier"|""|"Army"|""|""|""|""|""|""|""|""
"3"|":Dog:K9"|""|""|""|"Bolt"|"3"|""|""|""|""|""
""|""|""|""|""|""|""|"0"|"1"|"IS_OWNED_BY"|""|"30"
""|""|""|""|""|""|""|"2"|"3"|"TRAINS"|"duration(10 days, 0:00:00)"|""

Quoting

The following query is an example of using different delimiters.

Run this query with quoting "All":

MATCH (n)
OPTIONAL MATCH (n)-[r]-()
WITH COLLECT(DISTINCT n) AS nodes, COLLECT(DISTINCT r) AS relationships
CALL export_util.csv_graph(nodes, relationships, "/demonstration/export/Documents/file.csv", {quotes : "All"}) YIELD data, path RETURN data, path;

Result is the following CSV file:

"_id","_labels","age","branch","breed","name","years_of_service","_start","_end","_type","duration","rel_property"
"0",":Dog","","","Dalmatian","Rex","","","","","",""
"1",":Human","50","","","Carl","","","","","",""
"2",":Human:Soldier","","Army","","","","","","","",""
"3",":Dog:K9","","","","Bolt","3","","","","",""
"","","","","","","","0","1","IS_OWNED_BY","","30"
"","","","","","","","2","3","TRAINS","duration(10 days, 0:00:00)",""

Run this query with quoting "ifNeeded":

MATCH (n)
OPTIONAL MATCH (n)-[r]-()
WITH COLLECT(DISTINCT n) AS nodes, COLLECT(DISTINCT r) AS relationships
CALL export_util.csv_graph(nodes, relationships, "/demonstration/export/Documents/file.csv", {quotes : "ifNeeded"}) YIELD data, path RETURN data, path;

Result is the following CSV file:

_id,_labels,age,branch,breed,name,years_of_service,_start,_end,_type,duration,rel_property
0,:Dog,,,Dalmatian,Rex,,,,,,
1,:Human,50,,,Carl,,,,,,
2,:Human:Soldier,,Army,,,,,,,,
3,:Dog:K9,,,,Bolt,3,,,,,
,,,,,,,0,1,IS_OWNED_BY,,30
,,,,,,,2,3,TRAINS,"duration(10 days, 0:00:00)",

Run this query with quoting "none":

MATCH (n)
OPTIONAL MATCH (n)-[r]-()
WITH COLLECT(DISTINCT n) AS nodes, COLLECT(DISTINCT r) AS relationships
CALL export_util.csv_graph(nodes, relationships, "/demonstration/export/Documents/file.csv", {quotes : "none"}) YIELD data, path RETURN data, path;

_id,_labels,age,branch,breed,name,years_of_service,_start,_end,_type,duration,rel_property
0,:Dog,,,Dalmatian,Rex,,,,,,
1,:Human,50,,,Carl,,,,,,
2,:Human:Soldier,,Army,,,,,,,,
3,:Dog:K9,,,,Bolt,3,,,,,
,,,,,,,0,1,IS_OWNED_BY,,30
,,,,,,,2,3,TRAINS,duration(10 days\, 0:00:00),

SeparateHeader

The following query is an example separating the header.

MATCH (n)
OPTIONAL MATCH (n)-[r]-()
WITH COLLECT(DISTINCT n) AS nodes, COLLECT(DISTINCT r) AS relationships
CALL export_util.csv_graph(nodes, relationships, "/demonstration/export/Documents/file.csv", {separateHeader: true}) YIELD data, path RETURN data, path;

The CSV file containing the header:

"_id","_labels","age","branch","breed","name","years_of_service","_start","_end","_type","duration","rel_property"

The CSV file containing the rest of the data:

"0",":Dog","","","Dalmatian","Rex","","","","","",""
"1",":Human","50","","","Carl","","","","","",""
"2",":Human:Soldier","","Army","","","","","","","",""
"3",":Dog:K9","","","","Bolt","3","","","","",""
"","","","","","","","0","1","IS_OWNED_BY","","30"
"","","","","","","","2","3","TRAINS","duration(10 days, 0:00:00)",""

Stream

Example of exporting data to a stream. When the stream flag is True, the CSV file is not created, so the file path can be set as "" and ignored.

MATCH (n)
OPTIONAL MATCH (n)-[r]-()
WITH COLLECT(DISTINCT n) AS nodes, COLLECT(DISTINCT r) AS relationships
CALL export_util.csv_graph(nodes, relationships, "", {stream: True}) YIELD data, path RETURN data;

Stream:

"_id","_labels","age","branch","breed","name","years_of_service","_start","_end","_type","duration","rel_property"
"0",":Dog","","","Dalmatian","Rex","","","","","",""
"1",":Human","50","","","Carl","","","","","",""
"2",":Human:Soldier","","Army","","","","","","","",""
"3",":Dog:K9","","","","Bolt","3","","","","",""
"","","","","","","","0","1","IS_OWNED_BY","","30"
"","","","","","","","2","3","TRAINS","duration(10 days, 0:00:00)",""

`graphml()`

The procedure exports graph database to a graphML file.

Input:

path: string path to the graphML file that will contain the exported graph database.
config: Map The map of the configuration with the following keys:
- stream: boolean (default=False) Will the procedure return a stream of data rather than a file.
- format: string (default="") Set the export format to gephi or tinkerpop.
- caption: List A list of keys of properties, the value of which is eligible as value for the label data element in Gephi format. Order is important and if no match is found, then there is a fallback to the nodes first property. If the node has no properties then the ID is used.
- useTypes: boolean (default=False) Is the information about property values type stored.
- leaveOutLabels: boolean (default=False) Are nodes labels stored.
- leaveOutProperties: boolean (default=False) Are nodes properties stored.

Output:

status: string The data if the stream flag is set to True, success otherwise.

Usage:

The path you have to provide as procedure argument depends on how you started Memgraph.

DockerLinux

If you ran Memgraph with Docker, database will be exported to a graphML file inside the Docker container. We recommend exporting the database to the graphML file inside the /usr/lib/memgraph/query_modules directory.

You can call the procedure by running the following query:

CALL export_util.graphml(path);

The path is the path to the graphML file inside the /usr/lib/memgraph/query_modules directory in the running Docker container (e.g., /usr/lib/memgraph/query_modules/export.graphml).

You can copy the exported file to your local file system using the docker cp command.

To export database to a local graphML file create a new directory (for example, export_folder) and run the following command to give the user memgraph the necessary permissions:

sudo chown memgraph export_folder

Then, call the procedure by running the following query:

CALL export_util.graphml(path);

The path is the path to a local graphML file that will be created inside the export_folder (e.g., /users/my_user/export_folder/export.graphml).

Examples

Export database to a JSON file

Database state

Create a simple graph database by running the following queries:

CREATE (n:Person {name:"Anna"}), (m:Person {name:"John"}), (k:Person {name:"Kim"})
CREATE (n)-[:IS_FRIENDS_WITH]->(m), (n)-[:IS_FRIENDS_WITH]->(k), (m)-[:IS_MARRIED_TO]->(k);

The queries will create the following graph:

[image]

Export data

If youre using Memgraph with Docker, the following Cypher query will export the database to the export.json file in the /usr/lib/memgraph/query_modules directory inside the running Docker container:

CALL export_util.json("/usr/lib/memgraph/query_modules/export.json");

If youre using Memgraph on Ubuntu, Debian, RPM package or WSL, the following Cypher query will export the database to the export.json file in the /users/my_user/export_folder.

CALL export_util.json("/users/my_user/export_folder/export.json");

Results

The export.json file should be similar to the one below, except for the id values that depend on the internal database id values:

[
    {
        "id": 6114,
        "labels": [
            "Person"
        ],
        "properties": {
            "name": "Anna"
        },
        "type": "node"
    },
    {
        "id": 6115,
        "labels": [
            "Person"
        ],
        "properties": {
            "name": "John"
        },
        "type": "node"
    },
    {
        "id": 6116,
        "labels": [
            "Person"
        ],
        "properties": {
            "name": "Kim"
        },
        "type": "node"
    },
    {
        "end": 6115,
        "id": 21120,
        "label": "IS_FRIENDS_WITH",
        "properties": {},
        "start": 6114,
        "type": "relationship"
    },
    {
        "end": 6116,
        "id": 21121,
        "label": "IS_FRIENDS_WITH",
        "properties": {},
        "start": 6114,
        "type": "relationship"
    },
    {
        "end": 6116,
        "id": 21122,
        "label": "IS_MARRIED_TO",
        "properties": {},
        "start": 6115,
        "type": "relationship"
    }
]

Export database to a Cypher file

Database state

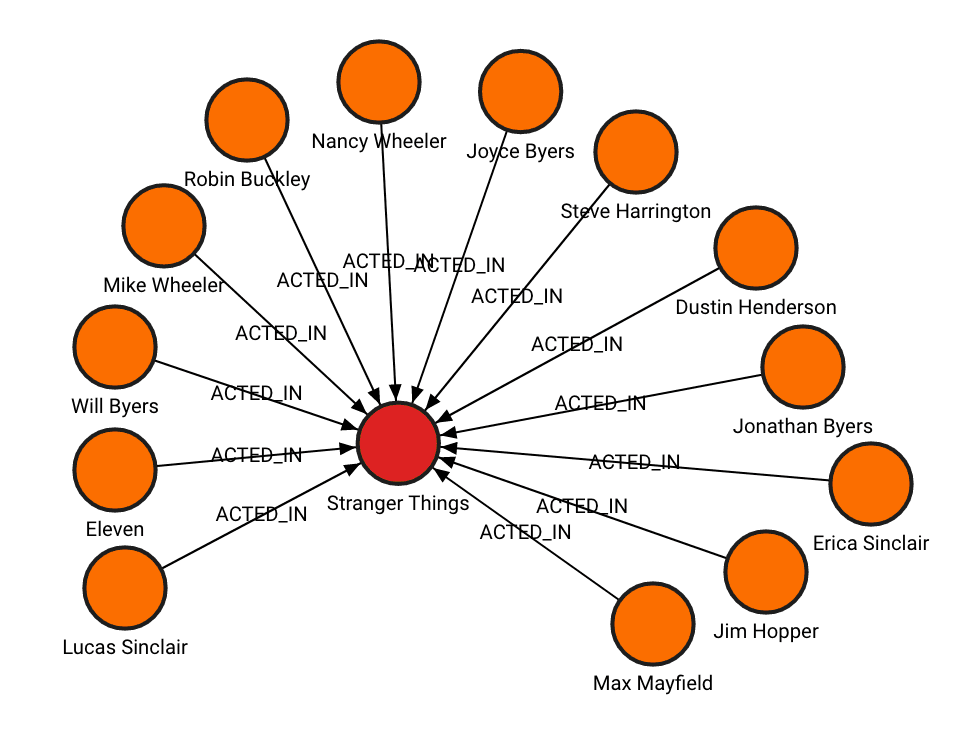

The database contains the following data:

[image]

Created using the following queries:

CREATE (StrangerThings:TVShow {title:'Stranger Things', released:2016, program_creators:['Matt Duffer', 'Ross Duffer']})
CREATE (Eleven:Character {name:'Eleven', portrayed_by:'Millie Bobby Brown'})
CREATE (JoyceByers:Character {name:'Joyce Byers', portrayed_by:'Winona Ryder'})
CREATE (JimHopper:Character {name:'Jim Hopper', portrayed_by:'David Harbour'})
CREATE (MikeWheeler:Character {name:'Mike Wheeler', portrayed_by:'Finn Wolfhard'})
CREATE (DustinHenderson:Character {name:'Dustin Henderson', portrayed_by:'Gaten Matarazzo'})
CREATE (LucasSinclair:Character {name:'Lucas Sinclair', portrayed_by:'Caleb McLaughlin'})
CREATE (NancyWheeler:Character {name:'Nancy Wheeler', portrayed_by:'Natalia Dyer'})
CREATE (JonathanByers:Character {name:'Jonathan Byers', portrayed_by:'Charlie Heaton'})
CREATE (WillByers:Character {name:'Will Byers', portrayed_by:'Noah Schnapp'})
CREATE (SteveHarrington:Character {name:'Steve Harrington', portrayed_by:'Joe Keery'})
CREATE (MaxMayfield:Character {name:'Max Mayfield', portrayed_by:'Sadie Sink'})
CREATE (RobinBuckley:Character {name:'Robin Buckley', portrayed_by:'Maya Hawke'})
CREATE (EricaSinclair:Character {name:'Erica Sinclair', portrayed_by:'Priah Ferguson'})
CREATE
(Eleven)-[:ACTED_IN {seasons:[1, 2, 3, 4]}]->(StrangerThings),
(JoyceByers)-[:ACTED_IN {seasons:[1, 2, 3, 4]}]->(StrangerThings),
(JimHopper)-[:ACTED_IN {seasons:[1, 2, 3, 4]}]->(StrangerThings),
(MikeWheeler)-[:ACTED_IN {seasons:[1, 2, 3, 4]}]->(StrangerThings),
(DustinHenderson)-[:ACTED_IN {seasons:[1, 2, 3, 4]}]->(StrangerThings),
(LucasSinclair)-[:ACTED_IN {seasons:[1, 2, 3, 4]}]->(StrangerThings),
(NancyWheeler)-[:ACTED_IN {seasons:[1, 2, 3, 4]}]->(StrangerThings),
(JonathanByers)-[:ACTED_IN {seasons:[1, 2, 3, 4]}]->(StrangerThings),
(WillByers)-[:ACTED_IN {seasons:[1, 2, 3, 4]}]->(StrangerThings),
(SteveHarrington)-[:ACTED_IN {seasons:[1, 2, 3, 4]}]->(StrangerThings),
(MaxMayfield)-[:ACTED_IN {seasons:[2, 3, 4]}]->(StrangerThings),
(RobinBuckley)-[:ACTED_IN {seasons:[3, 4]}]->(StrangerThings),
(EricaSinclair)-[:ACTED_IN {seasons:[2, 3, 4]}]->(StrangerThings);

Export data

Use the following query to export data into a Cypher file:

CALL export_util.cypher_all("export.cyp") YIELD path RETURN path;

The query will result in the export.cyp file with the following content:

CREATE (n:TVShow:_IMPORT_ID {title: 'Stranger Things', released: 2016, program_creators: ['Matt Duffer', 'Ross Duffer'], _IMPORT_ID: 0});
CREATE (n:Character:_IMPORT_ID {name: 'Eleven', portrayed_by: 'Millie Bobby Brown', _IMPORT_ID: 1});
CREATE (n:Character:_IMPORT_ID {name: 'Joyce Byers', portrayed_by: 'Winona Ryder', _IMPORT_ID: 2});
CREATE (n:Character:_IMPORT_ID {name: 'Jim Hopper', portrayed_by: 'David Harbour', _IMPORT_ID: 3});
CREATE (n:Character:_IMPORT_ID {name: 'Mike Wheeler', portrayed_by: 'Finn Wolfhard', _IMPORT_ID: 4});
CREATE (n:Character:_IMPORT_ID {name: 'Dustin Henderson', portrayed_by: 'Gaten Matarazzo', _IMPORT_ID: 5});
CREATE (n:Character:_IMPORT_ID {name: 'Lucas Sinclair', portrayed_by: 'Caleb McLaughlin', _IMPORT_ID: 6});
CREATE (n:Character:_IMPORT_ID {name: 'Nancy Wheeler', portrayed_by: 'Natalia Dyer', _IMPORT_ID: 7});
CREATE (n:Character:_IMPORT_ID {name: 'Jonathan Byers', portrayed_by: 'Charlie Heaton', _IMPORT_ID: 8});
CREATE (n:Character:_IMPORT_ID {name: 'Will Byers', portrayed_by: 'Noah Schnapp', _IMPORT_ID: 9});
CREATE (n:Character:_IMPORT_ID {name: 'Steve Harrington', portrayed_by: 'Joe Keery', _IMPORT_ID: 10});
CREATE (n:Character:_IMPORT_ID {name: 'Max Mayfield', portrayed_by: 'Sadie Sink', _IMPORT_ID: 11});
CREATE (n:Character:_IMPORT_ID {name: 'Robin Buckley', portrayed_by: 'Maya Hawke', _IMPORT_ID: 12});
CREATE (n:Character:_IMPORT_ID {name: 'Erica Sinclair', portrayed_by: 'Priah Ferguson', _IMPORT_ID: 13});
MATCH (n:_IMPORT_ID {_IMPORT_ID: 1}) MATCH (m:_IMPORT_ID {_IMPORT_ID: 0}) CREATE (n)-[:ACTED_IN {seasons: [1, 2, 3, 4]}]->(m);
MATCH (n:_IMPORT_ID {_IMPORT_ID: 2}) MATCH (m:_IMPORT_ID {_IMPORT_ID: 0}) CREATE (n)-[:ACTED_IN {seasons: [1, 2, 3, 4]}]->(m);
MATCH (n:_IMPORT_ID {_IMPORT_ID: 3}) MATCH (m:_IMPORT_ID {_IMPORT_ID: 0}) CREATE (n)-[:ACTED_IN {seasons: [1, 2, 3, 4]}]->(m);
MATCH (n:_IMPORT_ID {_IMPORT_ID: 4}) MATCH (m:_IMPORT_ID {_IMPORT_ID: 0}) CREATE (n)-[:ACTED_IN {seasons: [1, 2, 3, 4]}]->(m);
MATCH (n:_IMPORT_ID {_IMPORT_ID: 5}) MATCH (m:_IMPORT_ID {_IMPORT_ID: 0}) CREATE (n)-[:ACTED_IN {seasons: [1, 2, 3, 4]}]->(m);
MATCH (n:_IMPORT_ID {_IMPORT_ID: 6}) MATCH (m:_IMPORT_ID {_IMPORT_ID: 0}) CREATE (n)-[:ACTED_IN {seasons: [1, 2, 3, 4]}]->(m);
MATCH (n:_IMPORT_ID {_IMPORT_ID: 7}) MATCH (m:_IMPORT_ID {_IMPORT_ID: 0}) CREATE (n)-[:ACTED_IN {seasons: [1, 2, 3, 4]}]->(m);
MATCH (n:_IMPORT_ID {_IMPORT_ID: 8}) MATCH (m:_IMPORT_ID {_IMPORT_ID: 0}) CREATE (n)-[:ACTED_IN {seasons: [1, 2, 3, 4]}]->(m);
MATCH (n:_IMPORT_ID {_IMPORT_ID: 9}) MATCH (m:_IMPORT_ID {_IMPORT_ID: 0}) CREATE (n)-[:ACTED_IN {seasons: [1, 2, 3, 4]}]->(m);
MATCH (n:_IMPORT_ID {_IMPORT_ID: 10}) MATCH (m:_IMPORT_ID {_IMPORT_ID: 0}) CREATE (n)-[:ACTED_IN {seasons: [1, 2, 3, 4]}]->(m);
MATCH (n:_IMPORT_ID {_IMPORT_ID: 11}) MATCH (m:_IMPORT_ID {_IMPORT_ID: 0}) CREATE (n)-[:ACTED_IN {seasons: [2, 3, 4]}]->(m);
MATCH (n:_IMPORT_ID {_IMPORT_ID: 12}) MATCH (m:_IMPORT_ID {_IMPORT_ID: 0}) CREATE (n)-[:ACTED_IN {seasons: [3, 4]}]->(m);
MATCH (n:_IMPORT_ID {_IMPORT_ID: 13}) MATCH (m:_IMPORT_ID {_IMPORT_ID: 0}) CREATE (n)-[:ACTED_IN {seasons: [2, 3, 4]}]->(m);
MATCH (n:_IMPORT_ID) REMOVE n:`_IMPORT_ID` REMOVE n._IMPORT_ID;

Export query results to a CSV file

Database state

The database contains the following data:

[image]

Created using the following queries:

CREATE (StrangerThings:TVShow {title:'Stranger Things', released:2016, program_creators:['Matt Duffer', 'Ross Duffer']})
CREATE (Eleven:Character {name:'Eleven', portrayed_by:'Millie Bobby Brown'})
CREATE (JoyceByers:Character {name:'Joyce Byers', portrayed_by:'Winona Ryder'})
CREATE (JimHopper:Character {name:'Jim Hopper', portrayed_by:'David Harbour'})
CREATE (MikeWheeler:Character {name:'Mike Wheeler', portrayed_by:'Finn Wolfhard'})
CREATE (DustinHenderson:Character {name:'Dustin Henderson', portrayed_by:'Gaten Matarazzo'})
CREATE (LucasSinclair:Character {name:'Lucas Sinclair', portrayed_by:'Caleb McLaughlin'})
CREATE (NancyWheeler:Character {name:'Nancy Wheeler', portrayed_by:'Natalia Dyer'})
CREATE (JonathanByers:Character {name:'Jonathan Byers', portrayed_by:'Charlie Heaton'})
CREATE (WillByers:Character {name:'Will Byers', portrayed_by:'Noah Schnapp'})
CREATE (SteveHarrington:Character {name:'Steve Harrington', portrayed_by:'Joe Keery'})
CREATE (MaxMayfield:Character {name:'Max Mayfield', portrayed_by:'Sadie Sink'})
CREATE (RobinBuckley:Character {name:'Robin Buckley', portrayed_by:'Maya Hawke'})
CREATE (EricaSinclair:Character {name:'Erica Sinclair', portrayed_by:'Priah Ferguson'})
CREATE
(Eleven)-[:ACTED_IN {seasons:[1, 2, 3, 4]}]->(StrangerThings),
(JoyceByers)-[:ACTED_IN {seasons:[1, 2, 3, 4]}]->(StrangerThings),
(JimHopper)-[:ACTED_IN {seasons:[1, 2, 3, 4]}]->(StrangerThings),
(MikeWheeler)-[:ACTED_IN {seasons:[1, 2, 3, 4]}]->(StrangerThings),
(DustinHenderson)-[:ACTED_IN {seasons:[1, 2, 3, 4]}]->(StrangerThings),
(LucasSinclair)-[:ACTED_IN {seasons:[1, 2, 3, 4]}]->(StrangerThings),
(NancyWheeler)-[:ACTED_IN {seasons:[1, 2, 3, 4]}]->(StrangerThings),
(JonathanByers)-[:ACTED_IN {seasons:[1, 2, 3, 4]}]->(StrangerThings),
(WillByers)-[:ACTED_IN {seasons:[1, 2, 3, 4]}]->(StrangerThings),
(SteveHarrington)-[:ACTED_IN {seasons:[1, 2, 3, 4]}]->(StrangerThings),
(MaxMayfield)-[:ACTED_IN {seasons:[2, 3, 4]}]->(StrangerThings),
(RobinBuckley)-[:ACTED_IN {seasons:[3, 4]}]->(StrangerThings),
(EricaSinclair)-[:ACTED_IN {seasons:[2, 3, 4]}]->(StrangerThings);

Export query results

If youre using Memgraph with Docker, the following Cypher query will export the query result to the export.csv file in the /usr/lib/memgraph/query_modules directory inside the running Docker container.

WITH "MATCH path = (c:Character)-[:ACTED_IN]->(tvshow) RETURN c.name AS name, c.portrayed_by AS portrayed_by, tvshow.title AS title, tvshow.released AS released, tvshow.program_creators AS program_creators" AS query
CALL export_util.csv_query(query, "/usr/lib/memgraph/query_modules/export.csv", True)
YIELD file_path, data
RETURN file_path, data;

If youre using Memgraph on Ubuntu, Debian, RPM package or WSL, the following Cypher query will export the query results to the export.csv file in the /users/my_user/export_folder.

WITH "MATCH path = (c:Character)-[:ACTED_IN]->(tvshow) RETURN c.name AS name, c.portrayed_by AS portrayed_by, tvshow.title AS title, tvshow.released AS released, tvshow.program_creators AS program_creators" AS query
CALL export_util.csv_query(query, "/users/my_user/export_folder/export.csv", True)
YIELD file_path, data
RETURN file_path, data;

The output in the export.csv file should look like this:

name,portrayed_by,title,released,program_creators
Eleven,Millie Bobby Brown,Stranger Things,2016,"['Matt Duffer', 'Ross Duffer']"
Joyce Byers,Winona Ryder,Stranger Things,2016,"['Matt Duffer', 'Ross Duffer']"
Jim Hopper,David Harbour,Stranger Things,2016,"['Matt Duffer', 'Ross Duffer']"
Mike Wheeler,Finn Wolfhard,Stranger Things,2016,"['Matt Duffer', 'Ross Duffer']"
Dustin Henderson,Gaten Matarazzo,Stranger Things,2016,"['Matt Duffer', 'Ross Duffer']"
Lucas Sinclair,Caleb McLaughlin,Stranger Things,2016,"['Matt Duffer', 'Ross Duffer']"
Nancy Wheeler,Natalia Dyer,Stranger Things,2016,"['Matt Duffer', 'Ross Duffer']"
Jonathan Byers,Charlie Heaton,Stranger Things,2016,"['Matt Duffer', 'Ross Duffer']"
Will Byers,Noah Schnapp,Stranger Things,2016,"['Matt Duffer', 'Ross Duffer']"
Steve Harrington,Joe Keery,Stranger Things,2016,"['Matt Duffer', 'Ross Duffer']"
Max Mayfield,Sadie Sink,Stranger Things,2016,"['Matt Duffer', 'Ross Duffer']"
Robin Buckley,Maya Hawke,Stranger Things,2016,"['Matt Duffer', 'Ross Duffer']"
Erica Sinclair,Priah Ferguson,Stranger Things,2016,"['Matt Duffer', 'Ross Duffer']"

Export database to a graphML file

Database state

The database contains the following data:

[image]

Created using the following queries:

CREATE (StrangerThings:TVShow {title:'Stranger Things', released:2016, program_creators:['Matt Duffer', 'Ross Duffer']})
CREATE (Eleven:Character {name:'Eleven', portrayed_by:'Millie Bobby Brown'})
CREATE (JoyceByers:Character {name:'Joyce Byers', portrayed_by:'Winona Ryder'})
CREATE (JimHopper:Character {name:'Jim Hopper', portrayed_by:'David Harbour'})
CREATE (MikeWheeler:Character {name:'Mike Wheeler', portrayed_by:'Finn Wolfhard'})
CREATE (DustinHenderson:Character {name:'Dustin Henderson', portrayed_by:'Gaten Matarazzo'})
CREATE (LucasSinclair:Character {name:'Lucas Sinclair', portrayed_by:'Caleb McLaughlin'})
CREATE (NancyWheeler:Character {name:'Nancy Wheeler', portrayed_by:'Natalia Dyer'})
CREATE (JonathanByers:Character {name:'Jonathan Byers', portrayed_by:'Charlie Heaton'})
CREATE (WillByers:Character {name:'Will Byers', portrayed_by:'Noah Schnapp'})
CREATE (SteveHarrington:Character {name:'Steve Harrington', portrayed_by:'Joe Keery'})
CREATE (MaxMayfield:Character {name:'Max Mayfield', portrayed_by:'Sadie Sink'})
CREATE (RobinBuckley:Character {name:'Robin Buckley', portrayed_by:'Maya Hawke'})
CREATE (EricaSinclair:Character {name:'Erica Sinclair', portrayed_by:'Priah Ferguson'})
CREATE
(Eleven)-[:ACTED_IN {seasons:[1, 2, 3, 4]}]->(StrangerThings),
(JoyceByers)-[:ACTED_IN {seasons:[1, 2, 3, 4]}]->(StrangerThings),
(JimHopper)-[:ACTED_IN {seasons:[1, 2, 3, 4]}]->(StrangerThings),
(MikeWheeler)-[:ACTED_IN {seasons:[1, 2, 3, 4]}]->(StrangerThings),
(DustinHenderson)-[:ACTED_IN {seasons:[1, 2, 3, 4]}]->(StrangerThings),
(LucasSinclair)-[:ACTED_IN {seasons:[1, 2, 3, 4]}]->(StrangerThings),
(NancyWheeler)-[:ACTED_IN {seasons:[1, 2, 3, 4]}]->(StrangerThings),
(JonathanByers)-[:ACTED_IN {seasons:[1, 2, 3, 4]}]->(StrangerThings),
(WillByers)-[:ACTED_IN {seasons:[1, 2, 3, 4]}]->(StrangerThings),
(SteveHarrington)-[:ACTED_IN {seasons:[1, 2, 3, 4]}]->(StrangerThings),
(MaxMayfield)-[:ACTED_IN {seasons:[2, 3, 4]}]->(StrangerThings),
(RobinBuckley)-[:ACTED_IN {seasons:[3, 4]}]->(StrangerThings),
(EricaSinclair)-[:ACTED_IN {seasons:[2, 3, 4]}]->(StrangerThings);

Export data

If youre using Memgraph with Docker, the following Cypher query will export the database to the export.graphml file in the /usr/lib/memgraph/query_modules directory inside the running Docker container.

CALL export_util.graphml("/usr/lib/memgraph/query_modules/export.graphml, {useTypes: true})
YIELD status RETURN status;

If youre using Memgraph on Ubuntu, Debian, RPM package or WSL, the following Cypher query will export the database to the export.graphml file in the /users/my_user/export_folder.

CALL export_util.graphml("/users/my_user/export_folder/export.graphml, {useTypes: true})
YIELD status RETURN status;

The output in the export.graphml should look like this:

<?xml version="1.0" encoding="UTF-8"?>
<graphml xmlns="http://graphml.graphdrawing.org/xmlns" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://graphml.graphdrawing.org/xmlns http://graphml.graphdrawing.org/xmlns/1.0/graphml.xsd">
<key id="labels" for="node" attr.name="labels" attr.type="string"/>
<key id="title" for="node" attr.name="title" attr.type="string"/>
<key id="released" for="node" attr.name="released" attr.type="int"/>
<key id="program_creators" for="node" attr.name="program_creators" attr.type="string" attr.list="string"/>
<key id="name" for="node" attr.name="name" attr.type="string"/>
<key id="portrayed_by" for="node" attr.name="portrayed_by" attr.type="string"/>
<key id="label" for="edge" attr.name="label" attr.type="string"/>
<key id="seasons" for="edge" attr.name="seasons" attr.type="string" attr.list="int"/>
<graph id="G" edgedefault="directed">
<node id="n0" labels=":TVShow"><data key="labels">:TVShow</data><data key="title">Stranger Things</data><data key="released">2016</data><data key="program_creators">["Matt Duffer", "Ross Duffer"]</data></node>
<node id="n1" labels=":Character"><data key="labels">:Character</data><data key="name">Eleven</data><data key="portrayed_by">Millie Bobby Brown</data></node>
<node id="n2" labels=":Character"><data key="labels">:Character</data><data key="name">Joyce Byers</data><data key="portrayed_by">Winona Ryder</data></node>
<node id="n3" labels=":Character"><data key="labels">:Character</data><data key="name">Jim Hopper</data><data key="portrayed_by">David Harbour</data></node>
<node id="n4" labels=":Character"><data key="labels">:Character</data><data key="name">Mike Wheeler</data><data key="portrayed_by">Finn Wolfhard</data></node>
<node id="n5" labels=":Character"><data key="labels">:Character</data><data key="name">Dustin Henderson</data><data key="portrayed_by">Gaten Matarazzo</data></node>
<node id="n6" labels=":Character"><data key="labels">:Character</data><data key="name">Lucas Sinclair</data><data key="portrayed_by">Caleb McLaughlin</data></node>
<node id="n7" labels=":Character"><data key="labels">:Character</data><data key="name">Nancy Wheeler</data><data key="portrayed_by">Natalia Dyer</data></node>
<node id="n8" labels=":Character"><data key="labels">:Character</data><data key="name">Jonathan Byers</data><data key="portrayed_by">Charlie Heaton</data></node>
<node id="n9" labels=":Character"><data key="labels">:Character</data><data key="name">Will Byers</data><data key="portrayed_by">Noah Schnapp</data></node>
<node id="n10" labels=":Character"><data key="labels">:Character</data><data key="name">Steve Harrington</data><data key="portrayed_by">Joe Keery</data></node>
<node id="n11" labels=":Character"><data key="labels">:Character</data><data key="name">Max Mayfield</data><data key="portrayed_by">Sadie Sink</data></node>
<node id="n12" labels=":Character"><data key="labels">:Character</data><data key="name">Robin Buckley</data><data key="portrayed_by">Maya Hawke</data></node>
<node id="n13" labels=":Character"><data key="labels">:Character</data><data key="name">Erica Sinclair</data><data key="portrayed_by">Priah Ferguson</data></node>
<edge id="e0" source="n1" target="n0" label="ACTED_IN"><data key="label">ACTED_IN</data><data key="seasons">[1, 2, 3, 4]</data></edge>
<edge id="e1" source="n2" target="n0" label="ACTED_IN"><data key="label">ACTED_IN</data><data key="seasons">[1, 2, 3, 4]</data></edge>
<edge id="e2" source="n3" target="n0" label="ACTED_IN"><data key="label">ACTED_IN</data><data key="seasons">[1, 2, 3, 4]</data></edge>
<edge id="e3" source="n4" target="n0" label="ACTED_IN"><data key="label">ACTED_IN</data><data key="seasons">[1, 2, 3, 4]</data></edge>
<edge id="e4" source="n5" target="n0" label="ACTED_IN"><data key="label">ACTED_IN</data><data key="seasons">[1, 2, 3, 4]</data></edge>
<edge id="e5" source="n6" target="n0" label="ACTED_IN"><data key="label">ACTED_IN</data><data key="seasons">[1, 2, 3, 4]</data></edge>
<edge id="e6" source="n7" target="n0" label="ACTED_IN"><data key="label">ACTED_IN</data><data key="seasons">[1, 2, 3, 4]</data></edge>
<edge id="e7" source="n8" target="n0" label="ACTED_IN"><data key="label">ACTED_IN</data><data key="seasons">[1, 2, 3, 4]</data></edge>
<edge id="e8" source="n9" target="n0" label="ACTED_IN"><data key="label">ACTED_IN</data><data key="seasons">[1, 2, 3, 4]</data></edge>
<edge id="e9" source="n10" target="n0" label="ACTED_IN"><data key="label">ACTED_IN</data><data key="seasons">[1, 2, 3, 4]</data></edge>
<edge id="e10" source="n11" target="n0" label="ACTED_IN"><data key="label">ACTED_IN</data><data key="seasons">[2, 3, 4]</data></edge>
<edge id="e11" source="n12" target="n0" label="ACTED_IN"><data key="label">ACTED_IN</data><data key="seasons">[3, 4]</data></edge>
<edge id="e12" source="n13" target="n0" label="ACTED_IN"><data key="label">ACTED_IN</data><data key="seasons">[2, 3, 4]</data></edge>
</graph>
</graphml>

embeddings gnn
