Running a for-loop in parallel is the most fundamental building block in parallel programming. In this chapter, we are going to demonstrate how to use Cpp-Taskflow to create a task dependency graph of parallel for-loop.

Range-based For-loop

Cpp-Taskflow has a STL-style method tf::Taskflow::parallel_for(I beg, I end, C&& callable, size_t partitions) that partitions a range of items and applies a callable to each item in the partition in parallel. The method constructs a task dependency graph representing this workload and returns a task pair as two synchronization points to this task graph.

tf::Taskflow taskflow;

std::vector<int> items {1, 2, 3, 4, 5, 6, 7, 8};

auto [S, T] = taskflow.parallel_for(items.begin(), items.end(), [] (int item) {
  std::cout << std::this_thread::get_id() << " runs " << item << std::endl;
});

S.work([](){ std::cout << "S\n"; }).name("S");
T.work([](){ std::cout << "T\n"; }).name("T");

taskflow.dump(std::cout);

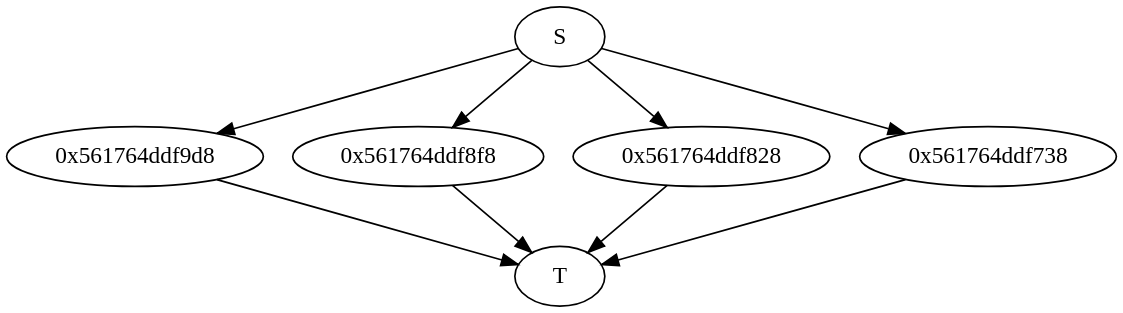

The above code generates the following task dependency graph. The label 0x56* represents an internal task node to execute the callable object. By default (partitions=0), Cpp-Taskflow evenly partitions and distributes the workload across the maximum hardware concurrency. Suppose our example has four logical cores, each internal node corresponds to a partition taking two items (eight tasks in total).

[parallel_for1.png]

Debrief:

Line 1 creates a taskflow object of four worker threads
Line 3 creates a vector container of eight items
Line 5-7 creates a parallel execution graph using the method parallel_for
Line 9-10 names the synchronization tasks S and T
Line 12 dumps the graph to a dot format which can be visualized through GraphViz Online

Here is one possible output of this program:

S
139931471636224 runs 1
139931471636224 runs 2
139931480028928 runs 7
139931480028928 runs 8
139931496814336 runs 3
139931496814336 runs 4
139931488421632 runs 5
139931488421632 runs 6
T

Partition the Workload Explicitly

By default, Cpp-Taskflow partitions the workload evenly across the workers. In some cases, it is useful to disable this feature and apply user-specified partition. The method parallel_for tasks an unsigned integer partitions as the number of partitions over the items.

auto [S, T] = taskflow.parallel_for(items.begin(), items.end(), [] (int item) {
  std::cout << std::this_thread::get_id() << " runs " << item << std::endl;
}, 8);

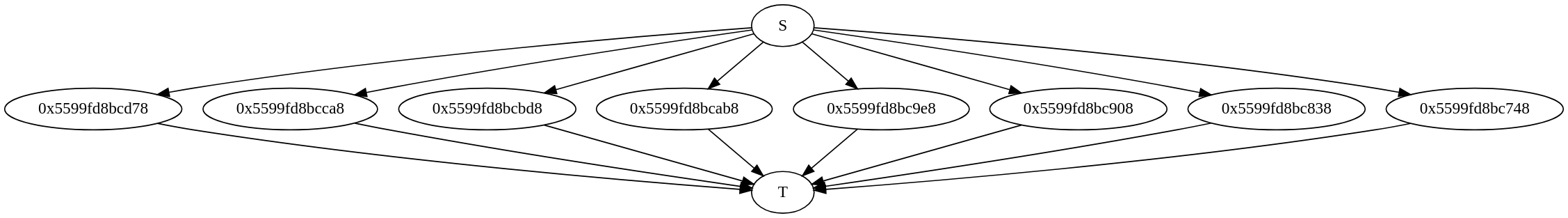

The above example will force each of the eight partitions to run exactly one item. This can be useful when you have unbalanced workload per item and would like to enable more efficient parallelization.

[parallel_for2.png]

Again, you can leave the partition variable to 0 to use our default partition strategy.

Construct the Graph Explicitly

You can explicitly construct a dependency graph that represents a parallel execution of a for-loop using only the basic methods tf::Taskflow::emplace and tf::Task::precede.

tf::Task S = taskflow.emplace([](){}).name("S");
tf::Task T = taskflow.emplace([](){}).name("T");
for(auto item : items) {
  tf::Task task = taskflow.emplace([item] () {
    std::cout << std::this_thread::get_id() << " runs " << item << std::endl;
  });
  S.precede(task);
  task.precede(T);
}

Index-based For-loop

Cpp-Taskflow provides an overload tf::Taskflow::parallel_for(I beg, I end, I step, C&& callable, size_t partitions) to parallelize an index-based for-loop. It takes three numbers beg, end, and step of the same type I and applies callable to each index in the range [beg, end) with the step size step.

taskflow.parallel_for(0, 10, 2, [] (int i) {
  std::cout << "parallel on " << i << std::endl;
});
// print 0, 2, 4, 6, 8

It also works on the opposite order with negative step size.

taskflow.parallel_for(10, 0, -2, [] (int i) {
  std::cout << "parallel on " << i << std::endl;
});
// print 10, 8, 6, 4, 2

Similarly, you can explicitly specify the partition size:

taskflow.parallel_for(0, 10, 2, [] (int i) {
  std::cout << "parallel on " << i << std::endl;
}, 3);
// print 0, 2, 4, 6, 8 (three partitions {0, 2}, {4, 6}, {8})

By default, Cpp-Taskflow performs even partition across the number of available threads if no partition size is given.

Example 1: Parallel Map

This example demonstrates how to use tf::Taskflow::parallel_for to create a parallel map pattern. The map operator modifies each item in the container to one if it is an odd number, or zero if it is an even number.

#include <taskflow/taskflow.hpp>
int main() {

  tf::Executor executor;
  tf::Taskflow taskflow;
  std::vector<int> items{1, 2, 3, 4, 5, 6, 7, 8};
  taskflow.parallel_for(items.begin(), items.end(), [] (int& item) {
    item = (item & 1) ? 1 : 0;
  });
  executor.run(taskflow).get();
  for(auto item : items) {
    std::cout << item << " ";
  }
  return 0;
}

The program outputs the following:

1 0 1 0 1 0 1 0

Example 2: Pipeline a Parallel For-loop

This example demonstrates how to pipeline a parallel-for workload with other tasks.

#include <taskflow/taskflow.hpp>

int main() {

  tf::Taskflow taskflow;

  std::vector<int> items(1024);
  std::atomic<int> sum {0};

  tf::Task T1 = taskflow.emplace([&] () {  // create a modifier task
    for(auto& item : items) {
      item = 1;
    }
  }).name("Create Items");

  auto [S, T] = taskflow.parallel_for(items.begin(), items.end(), [&] (int item) {
    sum.fetch_add(item, std::memory_order_relaxed);
  }, 8);

  tf::Task T2 = taskflow.emplace([&] () {  // create a output task
    std::cout << "sum is: " << sum << std::endl;
  }).name("Print Sum");

  T1.precede(S);  // modifier precedes parallel-for
  T.precede(T2);  // parallel-for precedes the output task

  tf::Executor().run(taskflow);

  return 0;
}

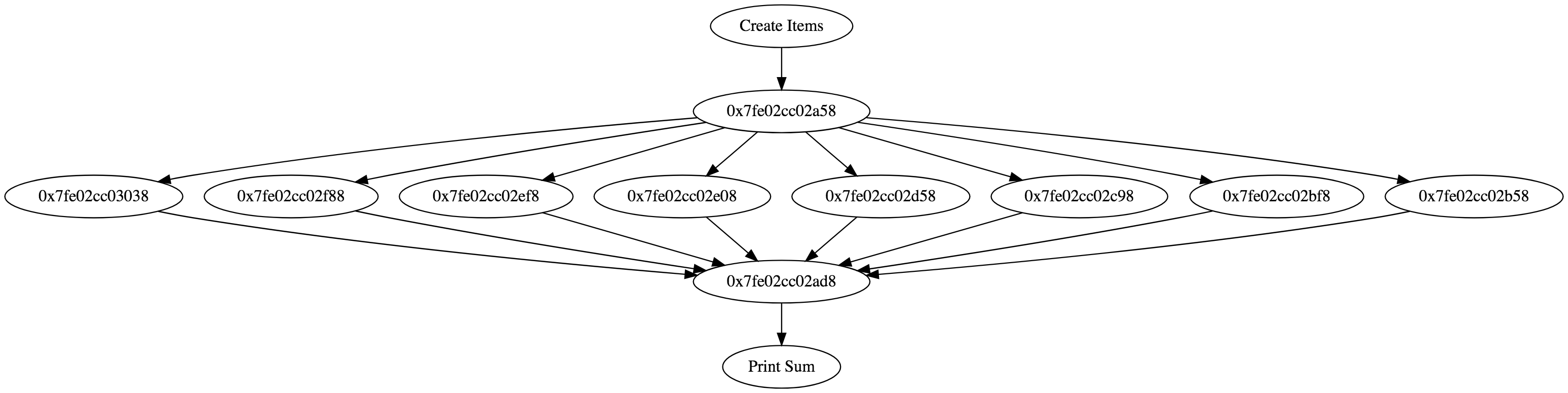

[parallel_for_example2.png]

The output of this programs is:

sum is: 1024

Debrief:

Line 5 creates a taskflow object
Line 7 creates a vector of 1024 uninitialized integers
Line 8 creates an atomic integer variable
Line 10-14 creates a task that captures the vector to initialize all items to one
Line 16-18 sums up all items with each thread running on a partition of 1024/8=128 items
Line 20-22 creates a task that outputs the summation value
Line 24-25 pipelines the parallel-for workload with the two tasks
Line 27 dispatches the graph to threads and blocks until the execution completes
