A real-time NetFlow visualization tool that displays network traffic on an interactive world map. Built with Go and designed for use with firewalls and routers that support NetFlow v9.

NetFlowMap was developed entirely with AI as an exploratory project. There might be dragons. 🐉

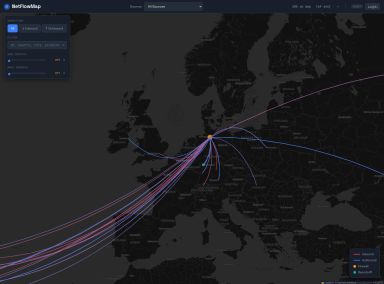

• Real-time Visualization: Watch network flows appear on a world map as they happen via WebSocket
• Multiple Sources: Configure and monitor multiple NetFlow sources simultaneously
• GeoIP Enrichment: Automatic IP geolocation using DB-IP Lite database
• Traffic Analysis:
  • Top 100 flows sorted by bandwidth
  • Aggregated traffic per remote IP
  • Min./Max. Traffic filter slider to focus on large/small transfers
• Sampling Support: Automatic detection of NetFlow sampling with optional extrapolation
• FortiGate Integration: Optional integration to resolve IP addresses to FortiGate address objects
• Traffic Filtering: Filter by direction (inbound/outbound), IP addresses, countries, or text search
• Authentication: Optional authentication with local users or OpenID Connect (OIDC)
• Role-based Access: Admin, User, and Anonymous roles with different visibility levels
• Admin Health Dashboard: Real-time system statistics including memory usage, goroutines, and flow metrics
• Responsive UI: Works on desktop and mobile browsers

• Docker (recommended) or Go 1.21+
• A NetFlow v9 source (e.g., FortiGate, OPNsense, Cisco router, etc.)

The easiest way to run NetFlowMap:

1. Download example configuration

   curl -O https://raw.githubusercontent.com/RiskIdent/NetFlowMap/main/configs/config.example.yml
   mv config.example.yml config.yml
   # Edit config.yml with your settings

2. Run the container

   docker run -d \
     -p 8080:8080 \
     -p 2055:2055/udp \
     -v $(pwd)/config.yml:/app/config.yml:ro \
     ghcr.io/riskident/netflowmap:latest

3. Access the web interface

   Open http://localhost:8080 in your browser.

1. Download the required files

   curl -O https://raw.githubusercontent.com/RiskIdent/NetFlowMap/main/docker-compose.yml
   curl -O https://raw.githubusercontent.com/RiskIdent/NetFlowMap/main/configs/config.example.yml
   mv config.example.yml config.yml
   # Edit config.yml with your settings

2. Start with Docker Compose

   docker compose up -d

3. Access the web interface

   Open http://localhost:8080 in your browser.

To change ports, edit docker-compose.yml:

ports:
  - "8080:8080"      # Change left side for different host port
  - "9995:2055/udp"  # Example: Use port 9995 for NetFlow

1. Clone the repository

   git clone https://github.com/RiskIdent/NetFlowMap.git
   cd NetFlowMap

2. Create configuration

   cp configs/config.example.yml config.yml

3. Build and run

   go build -o netflowmap ./cmd/netflowmap
   ./netflowmap

4. Access the web interface

   Open http://localhost:8080 in your browser.

See configs/config.example.yml for a complete configuration example.

Each source represents a device sending NetFlow data to NetFlowMap:

sources:
  - id: "fw-main"
    name: "Main Firewall"
    source_ip: "192.168.1.1"    # IP address of the NetFlow exporter
    latitude: 52.52             # Geographic location for map display
    longitude: 13.405

flows:
  # How long flows remain visible after last update (seconds)
  display_timeout_seconds: 60

  # Maximum number of flows to display (sorted by bandwidth)
  max_display_flows: 100

Configure the log level in config.yml:

log_level: info  # Options: trace, debug, info, warning, error

If your NetFlow exporter uses packet sampling (e.g., 1:100), NetFlowMap can detect this automatically via NetFlow Options Templates. As a fallback, you can configure it manually:

sources:
  - id: "fw-main"
    name: "Main Firewall"
    source_ip: "192.168.1.1"
    latitude: 52.52
    longitude: 13.405
    sampling_interval: 100  # 1:100 sampling

When sampling is detected, an "Extrapolate sampled data" toggle appears in the UI to estimate real traffic values.

Resolve remote IP addresses to FortiGate address object names:

sources:
  - id: "fw-main"
    name: "Main Firewall"
    source_ip: "192.168.1.1"
    latitude: 52.52
    longitude: 13.405
    fortigate:
      host: "https://192.168.1.1"
      token: "your-api-token"
      verify_ssl: false

NetFlowMap supports optional authentication with role-based access control.

1. Generate a password hash

   With Docker Compose:

   docker compose run --rm netflowmap --hash-password

   With local binary:

   ./netflowmap --hash-password

   You will be prompted to enter and confirm your password (input is hidden).

2. Create users.yml

   cp configs/users.example.yml users.yml

3. Add users to users.yml

   users:
     - username: admin
       role: admin
       password_hash: "$2a$10$..."

     - username: viewer
       role: user
       password_hash: "$2a$10$..."

4. Enable authentication in config.yml

   auth:
     enabled: true
     session_secret: "your-secret-key-min-16-chars"
     session_duration: 12h
     local:
       enabled: true
       users_file: "users.yml"

Connect to an OpenID Connect provider (Keycloak, Authentik, etc.):

auth:
  enabled: true
  session_secret: "your-secret-key-min-16-chars"
  session_duration: 12h
  oidc:
    enabled: true
    issuer_url: "https://auth.example.com/realms/main"
    client_id: "netflowmap"
    client_secret: "your-client-secret"
    redirect_url: "http://localhost:8080/auth/callback"
    admin_users:
      - "admin@example.com"
      - "kai"

• All OIDC-authenticated users receive the User role by default
• Users listed in admin_users receive the Admin role

Use the "Min. Traffic" slider to filter out small connections and focus on large data transfers. The slider supports values from 0 (disabled) up to 1 GB.

• All: Show both inbound and outbound flows
• Inbound: Show only traffic coming into your network (red lines)
• Outbound: Show only traffic leaving your network (blue lines)

Search for flows by:

• IP address
• Country or city name
• Protocol (TCP, UDP, ICMP)
• FortiGate address object name

Click on a remote IP marker (green dot) to see:

• Traffic summary (total bytes, inbound/outbound split)
• Organization and ASN information
• All active connections to that IP

Click the "Health" button in the header to view:

• NetFlowMap version and uptime
• Connected clients and flow statistics
• Per-source flow counts and address objects
• Go runtime metrics (memory, goroutines, GC)
• System CPU and memory usage

The dashboard auto-refreshes every 10 seconds.

NetFlowMap/
├── cmd/netflowmap/      # Application entry point
├── internal/
│   ├── auth/            # Authentication (local + OIDC)
│   ├── config/          # Configuration parsing
│   ├── flowstore/       # In-memory flow storage
│   ├── fortigate/       # FortiGate API client
│   ├── geoip/           # GeoIP database management
│   ├── logging/         # Structured logging
│   ├── netflow/         # NetFlow v9 collector & parser
│   └── web/             # HTTP server, handlers, WebSocket
├── web/
│   ├── static/          # CSS, JavaScript
│   └── templates/       # HTML templates
├── configs/             # Example configurations
└── data/                # GeoIP database files

1. Check that your firewall is sending NetFlow to the correct IP and port (default: 2055/UDP)
2. Verify the source_ip in your config matches the IP your firewall uses to send NetFlow
3. Check the logs: ./netflowmap or docker compose logs -f

• Only flows between public and private IPs are displayed
• Private-to-private or public-to-public flows are not shown on the map
• Check the "flows" counter in the header to see if flows are being received

• NetFlowMap displays the top 100 flows sorted by bandwidth
• Use the "Min. Traffic" slider to filter out small connections
• Ensure your NetFlow active/inactive timeouts are configured appropriately

MIT License - see LICENSE file for details.

For information about third-party components and their licenses, see LicenseInfo.md.

Contributions are welcome! Please open an issue or submit a pull request.
