This repository is no longer actively maintained on GitHub. The current version is a Bash script maintained in Codeberg, a free community alternative to GitHub. testFilesCreate - Bash script, Codeberg

A small Linux app that creates test files filling them with random data in a single directory or a directory tree.

• Includes a calculator for creating data in directory trees. [ Option -C ]
• Will create a single file to directory trees of files, minimum file size = 2 bytes
• Files can be identical or individually filled with random content.
• File contents can either be printable or binary. All contents generated from /dev/urandom.
• Selecting the printable pool of characters determines the compressibility of file contents.
• Files sizes can be identical or randomly sized within a given range.
• Run either interactively or unaccompanied in batch mode.

See Comaparitive benchmark testing of data compression and deduplication section on how testFileCreate can be used as a standardised benchmark for comparing data storage reduction techniques.

testFilesCreate is a Linux portable x64 executable created from the bash script using the shc utility, more info: Github shc

This requires a Linux bash environment to run. Will run in Microsoft WSL2(Linux), TestFilesCreate will not run in MSYS2, Gitbash and Cygwin environmants

Examples using testFileCreate to create data

Examples using testFileCreate to calculate storage requirements plus directories and files created

testFilesCreate datasheet - There are known browser issues with gitHub displaying PDF files, download it if gitHub refuses to display it.

testFileCreate -C

User Inputs: Tree depth, width, number files per directory and file size

Output: Summary, tables of data trees of current and smaller trees. Tables contain data size and file numbers for each tree

DEFAULTS

• File contents are binary. Use -P or -D for creating compressable printable data
• If all files same size then contents will also be identical. Use -r option to randomise file contents.
• A time stamped output directory is created in users current directory. Alternatively use another directory with the -o option
• Interactive mode, requires confirmation to proceed after providing user with a summary. See examples.

Maximum permitted values, see Limitations section

OPTIONS :

Directory Layout All mandatory

For the following, n is a number, minimum is 1

• -n n Number of files in each directory.
• -d n Depth. How many directories deep.
• -w n Width. How many directories wide.

Create single directory: -d 1 (-w if set, will be ignored)

Create tree of directories:

• Depth min is -d 2
• Width min is -w 1 and manditory

File Size A file size is mandatory

Fixed File Size

• File sizes have to be designated by B, K, M or G. Minimum is 2B (2 bytes). Example 2KiB = 2K, 3MiB = 3M 4GiB = 4G
• -f Fixed file size, default [usage: -f 2K]

NOTE: Default content for fixed file size of printable data is: ALL FILES ARE IDENTICAL, use

• -r Random content is generated individually for every file.

Random File Size

• All files individually filled with random content.
• -s Smallest file size.
• -l Largest file size.
• If -s is omitted, the random range starts at 2B (2 bytes) if largest file size is <1G, smallest size will be 1M (1MiB) if largest file size is >= 1G

File Contents Default is random binary

• -P n Where n is a number in the range 1 to 95. Selects the pool of printable characters from the ASCII set.

  • n = 1 files only contain the uppercase 'A'
  • n = 2 to 26 files only contain lowercase Latin alphabet characters
  • n >26 files contain printable ASCII characters. Max n = 95

• -D n Where n is a number in the range 1 to 10. Selects the pool of digit charcters from the ASCII set.

  • n = 1 files only contain zeros '0'
  • n > 1 files contain digits. Max n = 10

• -r Random content for fixed file sizes.

INPUT, OUTPUT and LOGGING

• -b Batch/quiet run with no user checks. Default is interactive with user input.
• -o Output to an existing directory.
• Defaults to current working directory
• Creates a new time stamped directory for content (tfc_YYMMDD_hhmm_ss).
• No logging. In batch mode user has to redirect output to a file
• Progress indicated by time stamping every ten directories filled with files.
• The 'script' command can be used in interactive mode to record all activty.

LIMITATIONS

Data creation bails out before any data creation if:

• The number of directories to be created exceeds 100 million
• The number of files to be created exceeds 100 million
• If the 'shuf' command is not available
• if the -c option not avaiable for the 'head' command.

If the 'seq' command is not avaiable. The character pool will not be displayed in the inital summary. The seq command is not required for file creation.

Binary data is generated from /dev/urandom. This data will not compress that well. Binary data that is stored/transmitted may render data deduplication and compression ineffective.

FILE CONTENT VALIDATION

Validate contents: all Files:

od -N <bytes> -Ax -t x1z <file name>

• Where <bytes> is the number to check from beginning of file.
• Non-printable characters will appear as "dots"

Validate printable character distribution:

od -a <file name>  | cut -b 9- | tr " " \\n | egrep -v "^$" | sort | uniq -c
OR
sed 's/\(.\)/\1\n/g' <file name> | sort | uniq -c

Output

• Column 1 : Character count
• Column 2 : Character being counted. NOTE : This column should only contain a single charcter, if more than one character then file contents is binary data.

Validate printable character pool count:

Example: confirms that a complexity of 17 given by -P 17 contains a pool of 17 different characters.

od -a <file name>  | cut -b 9- | tr " " \\n | egrep -v "^$" | sort | uniq -c | wc -l
OR
sed 's/\(.\)/\1\n/g' <file name> | sort | uniq -c | wc -l

Duplicate files Duplicate files will occur when file size is very small and the pool of random characters is small.

Examples - Testing for duplicate files. Number of files for each test was 1 million.

./testFileCreate -d 1 -w 1 -n 1000000 -f 35B -P2 -r  # creates 1 million files in a single directory each 35 byte file is
                                                     # randomly filled with two characters (ab)

Three characters (abc) in random pool

Two characters (ab) in random pool

Examples - Creating data

testFilesCreate -P 28 -d 3 -w 5 -f 15M -n 50

    DIRECTORY TREE each directory contains 5 directories and 50 files
    The tree is 3 levels deep
    Output: /home/ted/test/tfc_240930-1759-37
    All files with identical contents
    Files created are all 15M
    Storage used...... 22.71G (max potential)
    File Contents..... Random selection from the 28 char set: !"#$%&'()*+,-./0123456789:;<
    Total data directories........30
    Total data files............1550
    Do you want to proceed? (y/n)

testFilesCreate -D 5 -d 1 -f 600K -n 1000 -r -o /home/ted/test

    SINGLE DIRECTORY containing 1000 files
    Output: /home/ted/test/tfc_240930-1802-53
    Random data created individually for all files
    Files created are all 600K
    Storage used...... 585.94M (max potential)
    File Contents..... Random selection from the 5 digit set: 01234
    Total data directories.........1
    Total data files............1000
    Do you want to proceed? (y/n)

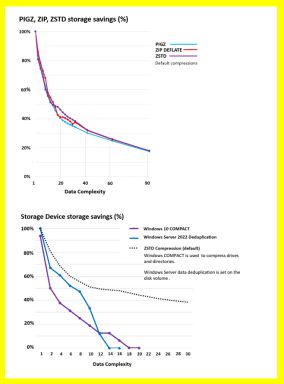

testFileCreate can be used as a standardised benchmark for comparing data storage reduction techniques.

In these examples the Data Complexity is set by the -P option. A data complexity of 10 = -P 10 and a data complexity of 12 = -P 12

For more information on the creation of the charts see testFilesCreate datasheet .
